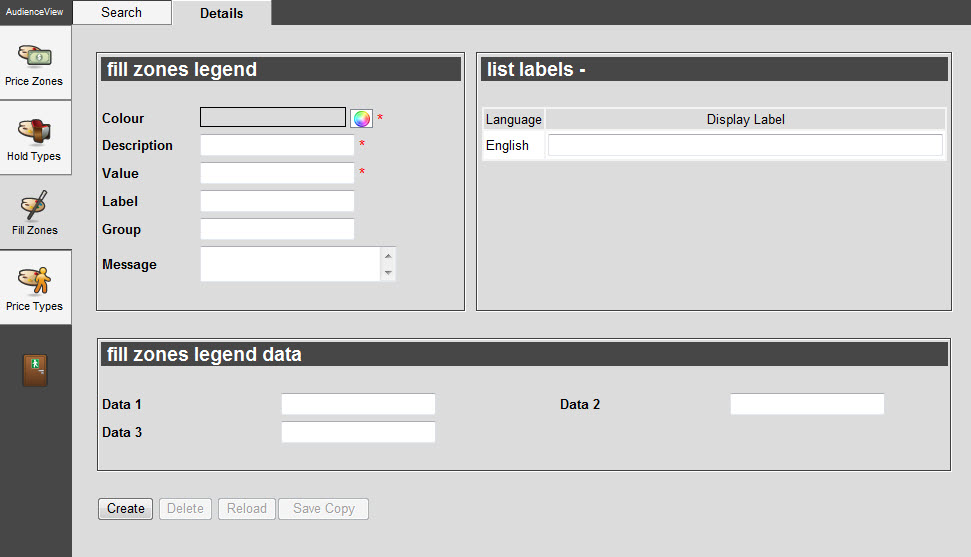

The following image illustrates the Legends application Fill Zones|Details page:
The Legends application Fill Zones|Details page consists of the following properties:
| Field |
Description |
| Colour |
Select a unique colour to represent the new best available level.
Click  to select a colour. |
| Description |
Enter a name or description to identify the best available level. |
| Value |
Enter a numerical value for the new best available level.
This value is used for sorting the best available levels when displayed in other areas of the application. For example, when configuring a fill zone template, value 1 will appear in the list of best available level options before value 2. |
| Label |
Enter a single-character label for the best available level. This label is used to represent the best available level on venue and performance seating chart printouts.
For more information, refer to Printing a Venue Template. |
| Group |
Enter a name that you want the fill zone grouped under. |
| Message |
Enter a message that will be displayed when seats within the fill zone are selected (e.g. obstructed view or accessibility seating messages). |
| Display Label |
Enter a name for the fill zone.
If your system is configured for multi-language use, the 'Display Label' allows you to enter alternative language labels for the selected fill zone. |
| Data [1-3] |
Enables you to store additional information specific to your organization.
Any data entered into these fields is searchable through Business Intelligence. To modify a data field label, navigate to the Registry application Registry::EN::Business Objects::TSvalueLegendBO::Value Legend node and select the field that you want to re-label.
 | Information
The field labels in the Value Legend node are shared with with the Price Zones|Details and Hold Types|Details pages. |
|
