The Legends application Fill Zones|Search page allows you to search for and select previously saved fill zone. When the 'Search' button is clicked, results that match the entered search criteria are displayed in the select fill zone section. When a fill zone is selected the Fill Zones|Details page appears, allowing you to view and edit the basic details of the selected fill zone.

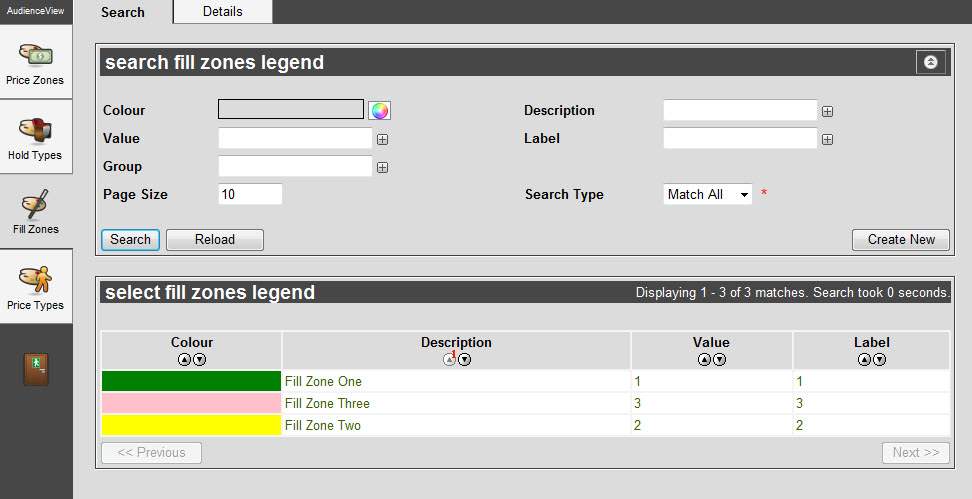

The following image illustrates the default Legends application Fill Zones|Search page:
The Fill Zones|Search Page
The default Legends application Fill Zones|Search page enables you to search for existing fill zones using the following criteria:
|
Field |
Description |
|
Colour |
Enables you to filter the search for the best available levels that match the selected colour.
Click  to select a colour. |
|
Description |
Enables you to filter the search based on the description of the best available level.
You can enter the words with which the description begins or use wildcards to search using portions of text.
For more information refer to Using Wildcard Characters to Perform a Search.
To add additional fields, click  or press CTRL+TAB once you have made an entry. |
|
Value |
Enables you to filter the search based on the numerical value of the best available level.
To add additional fields, click or press CTRL+TAB once you have made an entry. |
|
Label |
Enables you to filter the search based on the single-character label for the best available level.
To add additional fields, click or press CTRL+TAB once you have made an entry. |
|
Group |
Enables you to filter the search based on the fill zone group name.
To add additional fields, click or press CTRL+TAB once you have made an entry. |
|
Page Size |
Enables you to specify the number of records to display per page returned in the results. |
|
Search Type |
Enables you to choose the appropriate type of matches you are expecting:
-
Match Any: When you want to search for records containing one or more of the search terms you selected.
-
Match All: When you want to search for records that contain all of the search terms you selected.
|
Other searches can be created using the Business Intelligence and Reports application. For more information, refer to Business Intelligence and Reports Business Intelligence.
